AquaIntel SW70 7kW Hot Tub & Pool Heat Pump
AquaIntel SW70 7kW Hot Tub & Pool Heat Pump
Couldn't load pickup availability

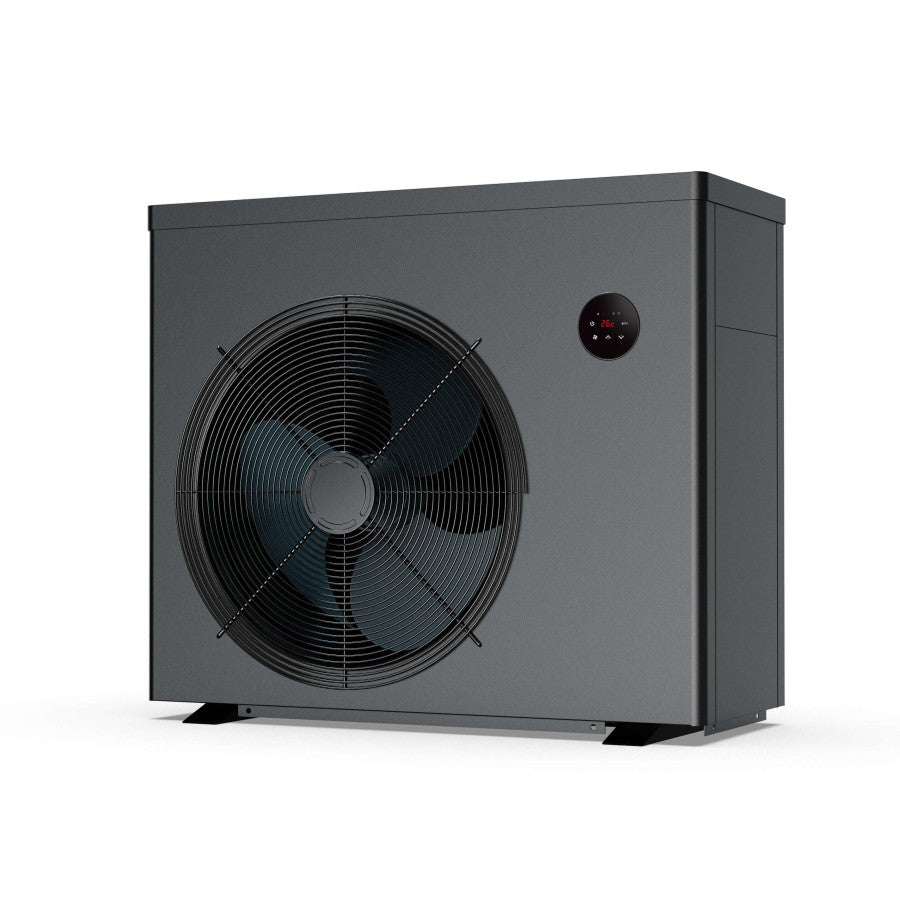

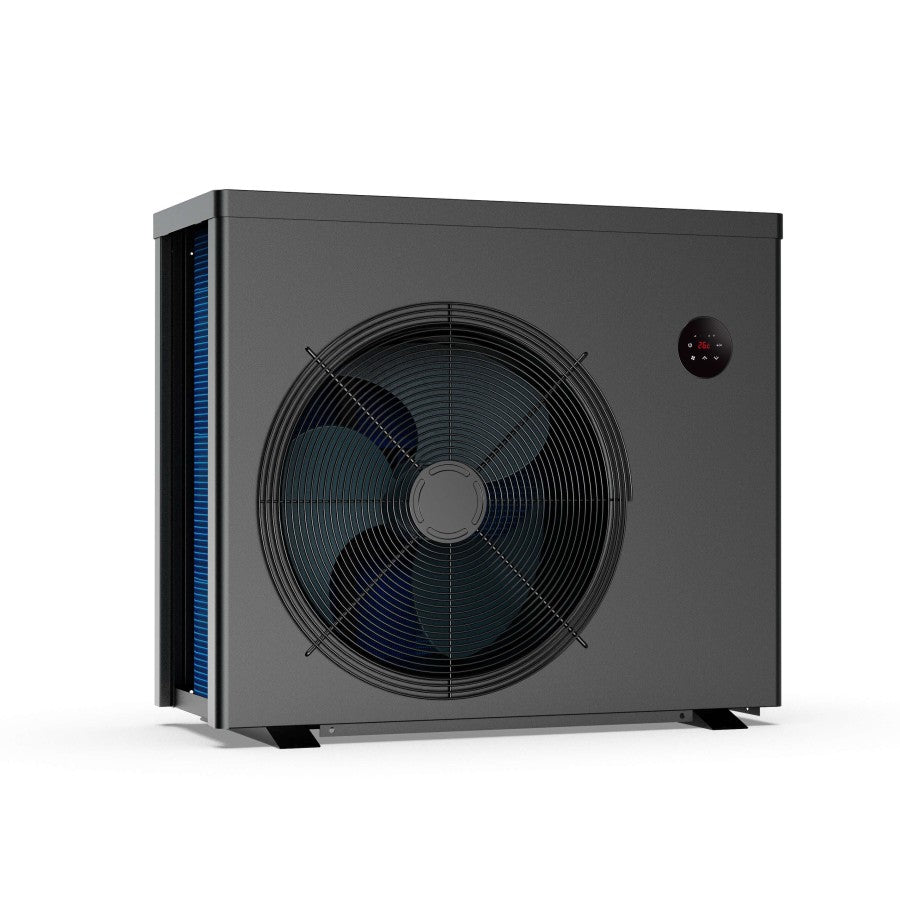

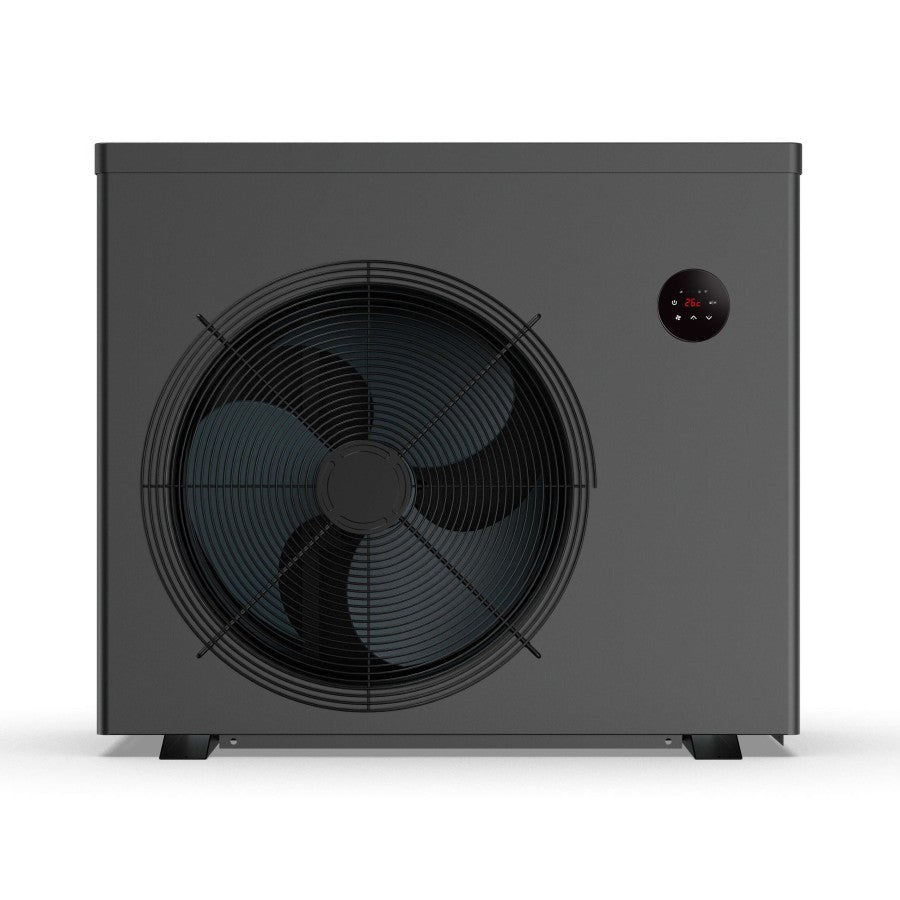

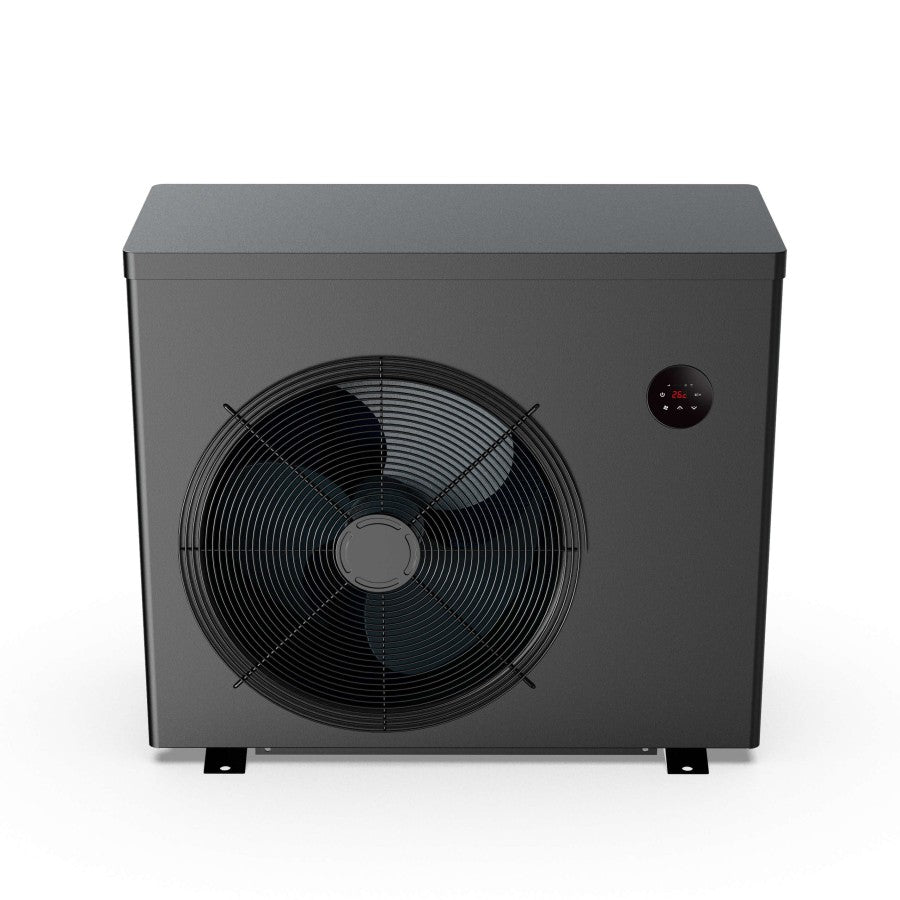

Aquark Aquaintel SW70 – Inverter Hot Tub and Swim Spa Heat Pump (7.0kW)
Energy Efficient | Ultra-Quiet | Smart Anywhere Control
The Aquark Aquaintel SW70 delivers exceptional energy-saving performance with an impressive average COP of 9.5. Designed to operate at 50% capacity for 95% of the hot tub season, it maintains water temperature efficiently while ensuring ultra-quiet operation for a serene hot tub environment. Its advanced Stepless DC Inverter Technology allows precise adjustment of the compressor (hertz by hertz) and fan motor (round by round), intelligently adapting to real-time heating demands. Compared to traditional On/Off heat pumps, it offers up to 1012 kWh in seasonal energy savings (based on a 13kW model heating a 50m³ pool). This means nearly double the efficiency, resulting in lower running costs and a reduced environmental footprint. With Inverquark technology, a DC brushless fan motor, and the Stepless Inverter compressor, the Aquaintel SW70 operates with whisper-quiet precision. The professional control system ensures smart, automatic adjustments based on ambient and water temperature, and with the InverGo App, you can control your hot tub heat pump anytime, anywhere — including scheduling and full access to system functions.
Key Benefits:
High Average COP: 9.5 for unbeatable energy efficiency
Stepless Inverter Technology: Adjusts speed intelligently to meet real-time heating needs
Energy Savings: Save up to 1012 kWh per season vs On/Off models
Quietcomfort: Ultra-quiet operation with Inverquark tech and DC brushless fan
Smart Control System: Automatically adapts to environmental and water conditions
InverGo App: Full remote control, scheduling, and settings access
Specifications:
Heating Capacity (A27/W27): 7.0 kW
Heating Capacity (A15/W25): 5.0 kW
COP Range (A27/W27): 10.1 – 6.0
COP Range (A15/W25): 6.3 – 4.3
Average COP: 9.5
Recommended Pool Volume: 15 – 30 m³
Nominal Water Flow Rate: 2 – 4 m³/h
Installation Location: Outdoor
Refrigerant Type: R32
Connection Size: 50 mm
Noise Levels:
@1m Distance: 39.8 – 51.2 dB(A)
@10m Distance: 19.8 – 31.2 dB(A)
Sound Power: 45 dB
Current Draw: 1.0 – 5.06 A
Maximum Operating Current: 6.5 A
Power Supply: 220–240V / 50Hz
Dimensions:
Width: 903mm
Depth: 349mm
Weight: 43kg
